characteristic：
◆ Passed CE safety level 4 certification；
◆ Compact size and beautiful appearance；
◆ Easy and flexible installation；
◆ Strong resistance to electromagnetic and optical interference；
◆ Strong vibration resistance, superior waterproof and dustproof performance;
◆ Complete self inspection and mutual inspection functions;
◆ Equipped with working status, wiring, fault indication, and auxiliary lighting functions;
◆ Dual NPN/PNP output with security monitoring；
◆ Equipped with EDM and auxiliary output functions (optional).
Technical parameters:
?
| protective length | 0~6000mm |
| protection height | Optical axis spacing× (Number of beams -1) |
| Beam pitch | 7.5mm, 15mm, 30mm |
| check the accuracy | 14mm, 21mm, 36mm |
| Working power supply | DC12V~24V |
| Working current | <200mA |
| LOAD | <200mA |
| response time | <20ms |
| Diagnostic Coverage | >99% |
| Mean time between dangerous failures | 99a |
| security level | PL e (EN ISO 13849) |
| protection grade | IP65 |
| operation temperature | –10°C ~ +55°C |
| ambient humidity | 20°C, RH ≤85% |
| Anti light interference | 10000Lux (incident angle ≥5°) |
| Anti vibration | Frequency: 10~55Hz, amplitude: 0.35mm |
| Impact resistance | 10g, 16ms, X,Y,Z-axis, 1000 times per axis |
選型表：

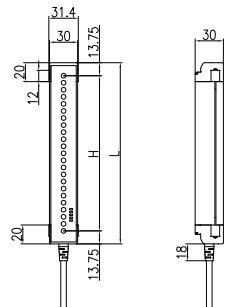

H: Protection height L: Sensor height
?
?
?
?
| check the accuracy14mm | check the accuracy21mm | check the accuracy36mm | |||||||||
| specifications | light beam | H | L | specifications | light beam | H | L | specifications | light beam | H | L |
| SFC140165 | 23? | 165? | 193? | SFC210165 | 12? | 165? | 193? | SFC360210 | 8? | 210? | 238? |
| SFC140225 | 31? | 225? | 253? | SFC210225 | 16? | 225? | 253? | SFC360270 | 10? | 270? | 298? |
| SFC140285 | 39? | 285? | 313? | SFC210285 | 20? | 285? | 313 | SFC360330 | 12? | 330? | 358? |
| SFC140345 | 47? | 345? | 373? | SFC210345 | 24? | 345? | 373? | SFC360390 | 14? | 390? | 418? |
| SFC140405 | 55? | 405? | 433? | SFC210405 | 28? | 405? | 433 | SFC360450 | 16? | 450? | 478? |
| SFC140465 | 63? | 465? | 493? | SFC210465 | 32? | 465? | 493? | SFC360510 | 18? | 510? | 538? |
| SFC140525 | 71? | 525? | 553? | SFC210525 | 36? | 525? | 553? | SFC360570 | 20? | 570? | 598? |
| SFC140585 | 79? | 585? | 613? | SFC210585 | 40? | 585? | 613? | SFC360630 | 22? | 630? | 658? |
| SFC140645 | 87? | 645? | 673? | SFC210645 | 44? | 645? | 673 | SFC360690 | 24? | 690? | 718? |
| SFC140705 | 95? | 705? | 733? | SFC210705 | 48? | 705? | 733? | SFC360750 | 26? | 750? | 778? |
| SFC140765 | 103? | 765? | 793? | SFC210765 | 52? | 765? | 793? | SFC360810 | 28? | 810? | 838? |
| SFC140825 | 111? | 825? | 853? | SFC210825 | 56? | 825? | 853? | SFC360870 | 30? | 870? | 898? |
| SFC140885 | 119? | 885? | 913? | SFC210885 | 60? | 885? | 913? | SFC360930 | 32? | 930? | 958? |
| SFC140945 | 127? | 945? | 973? | SFC210945 | 64? | 945? | 973? | SFC360990 | 34? | 990? | 1018? |
| SFC141005 | 135? | 1005? | 1033? | SFC211005 | 68? | 1005? | 1033? | SFC361050 | 36? | 1050? | 1078? |
| SFC141065 | 143? | 1065? | 1093? | SFC211065 | 72? | 1065? | 1093? | SFC361110 | 38? | 1110? | 1138? |
| SFC141125 | 151? | 1125? | 1153? | SFC211125 | 76? | 1125? | 1153? | SFC361170 | 40? | 1170? | 1198? |
| SFC141185 | 159? | 1185? | 1213? | SFC211185 | 80? | 1185? | 1213 | SFC361230 | 42? | 1230? | 1258? |
| SFC141245 | 167? | 1245? | 1273? | SFC211245 | 84? | 1245? | 1273? | SFC361290 | 44? | 1290? | 1318? |
| SFC141305 | 175? | 1305? | 1333? | SFC211305 | 88? | 1305? | 1333? | SFC361350 | 46? | 1350? | 1378? |
| SFC141365 | 183? | 1365? | 1393? | SFC211365 | 92? | 1365? | 1393? | SFC361410 | 48? | 1410? | 1438? |
| SFC141425 | 191? | 1425? | 1453? | SFC211425 | 96? | 1425? | 1453? | SFC361470 | 50? | 1470? | 1498? |
| SFC141485 | 199? | 1485? | 1513? | SFC211485 | 100? | 1485? | 1513 | SFC361530 | 52? | 1530? | 1558? |
