MCI Series Safety Light Curtain

MCI Series Safety Light Curtain

...

product

Features:

◆ Convenient to mount and wiring, complete range of models;

◆ Perfect self-checking function;

◆ Good immunity to the surrounding lights and electromagnetic;

◆ Good performance of anti-vibration, water and dust;

◆ LED intuitive indication of the sensor’s status;

◆ Optical synchronization applied to save mounting time.

Parameters:

Protection range

0~8000mm

Protection height

Light axis pitch×(beams-1)

Light axis pitch

10mm, 20mm, 40mm, 80mm

Detection capability

19mm, 29mm, 49mm, 89mm

Power supply

DC24V

Working current

<200mA

Loading current

<200mA

Response time

<20ms(<80?beams)

DC

>99%

MTTFD

120a

Safety level

PL c (EN ISO 13849)

Sealing level

IP65

Operation temp.

–10°C ~ +55°C

Humidity

20°C, RH ≤85%

Immunity to light

10000Lux (Angle of incidence ≥5°)

Anti-vibration

Frequency:10~55Hz, Amplitude:0.35mm

Impact resistance

10g, 16ms, 000times at X,Y,Z axis

?

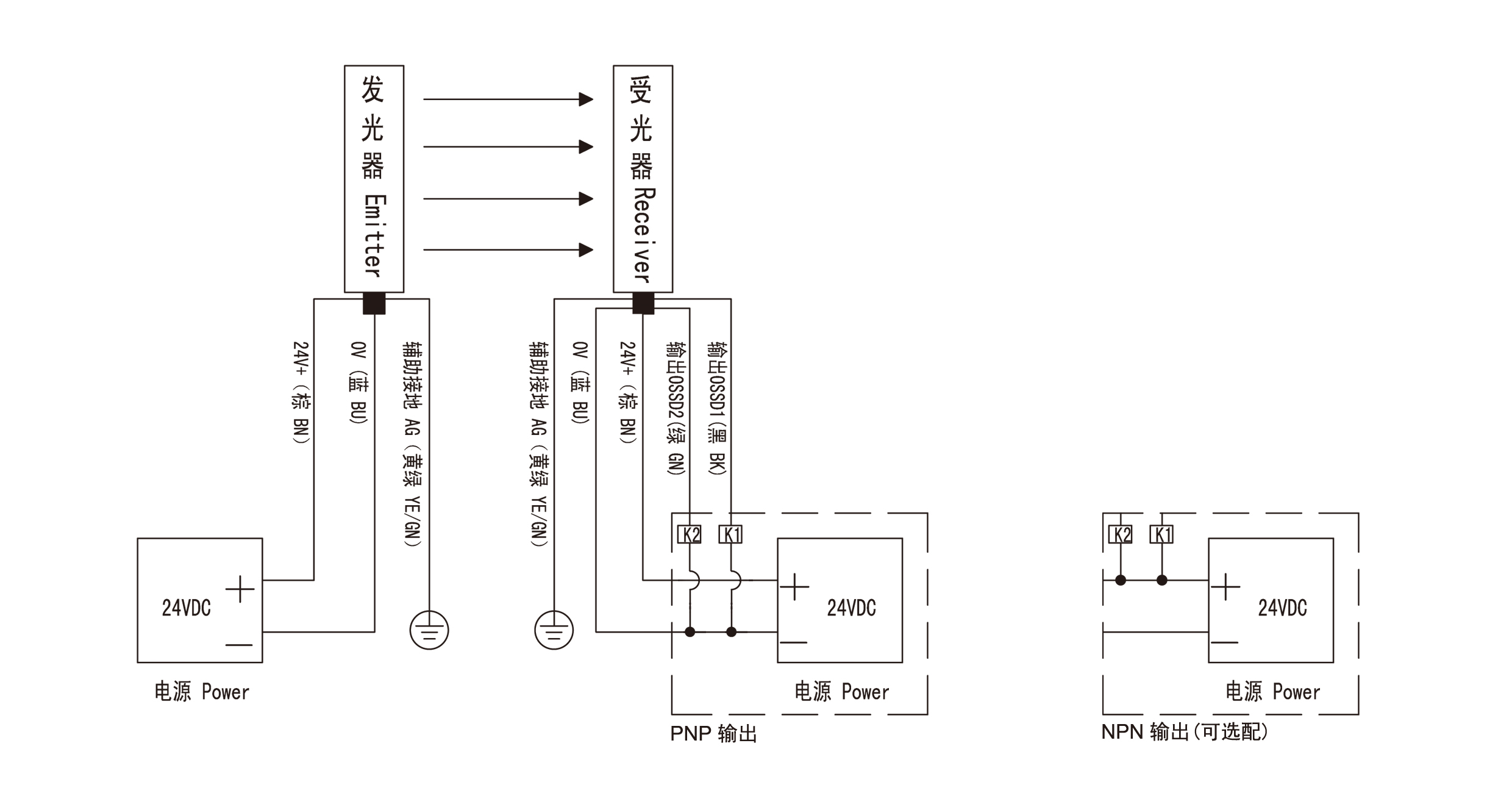

Wiring:

?

?

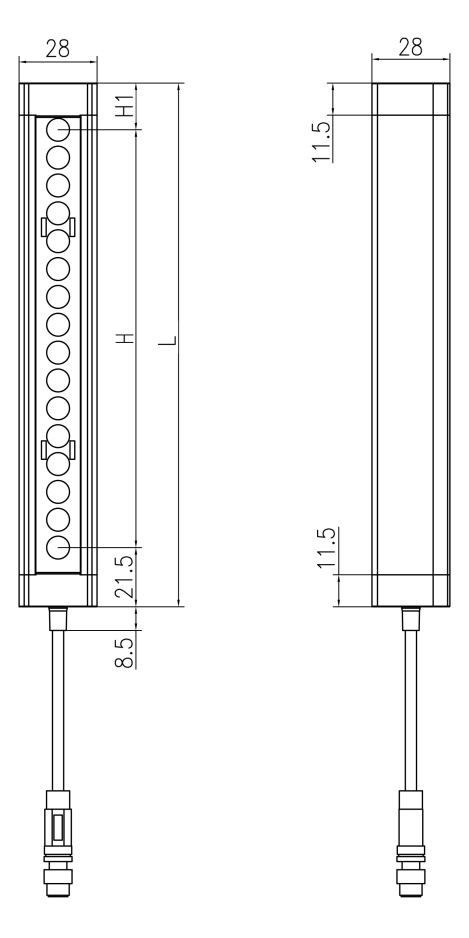

Size:

?

H:protection height;?H1: the distance from upper 1st beam center to the upper end cover:

16.5mm(light axis pitch: 10mm), 26.5mm(light axis pitch: 20mm), 46.5mm(light axis pitch: 40mm);

L:sensor housing height;

Models:

light axis pitch 10mm light axis pitch 20mm light axis pitch 40mm
specification beam H L specification beam H L specification beam H L
MCⅠ1610 16 150 188 MCⅠ 0820 8 140 188 MCⅠ 0440 4 120 188
MCⅠ2010 20 190 228 MCⅠ 1220 12 220 268 MCⅠ 0640 6 200 268
MCⅠ2410 24 230 268 MCⅠ 1620 16 300 348 MCⅠ 0840 8 280 348
MCⅠ2810 28 270 308 MCⅠ 2020 20 380 428 MCⅠ 1040 10 360 428
MCⅠ3210 32 310 348 MCⅠ 2420 24 460 508 MCⅠ 1240 12 440 508
MCⅠ3610 36 350 388 MCⅠ 2820 28 540 588 MCⅠ 1440 14 520 588
MCⅠ4010 40 390 428 MCⅠ 3220 32 620 668 MCⅠ 1640 16 600 668
MCⅠ4410 44 430 468 MCⅠ 3620 36 700 748 MCⅠ 1840 18 680 748
MCⅠ4810 48 470 508 MCⅠ 4020 40 780 828 MCⅠ 2040 20 760 828
MCⅠ5210 52 510 548 MCⅠ 4420 44 860 908 MCⅠ 2240 22 840 908
MCⅠ5610 56 550 588 MCⅠ 4820 48 940 988 MCⅠ 2440 24 920 988
MCⅠ6010 60 590 628 MCⅠ 5220 52 1020 1068 MCⅠ 2640 26 1000 1068
MCⅠ6410 64 630 668 MCⅠ 5620 56 1100 1148 MCⅠ 2840 28 1080 1148
MCⅠ6810 68 670 708 MCⅠ 6020 60 1180 1228 MCⅠ 3040 30 1160 1228
MCⅠ7210 72 710 748 MCⅠ 6420 64 1260 1308 MCⅠ 3240 32 1240 1308
MCⅠ7610 76 750 788 MCⅠ 6820 68 1340 1388 MCⅠ 3440 34 1320 1388
MCⅠ8010 80 790 828 MCⅠ 7220 72 1420 1468 MCⅠ 3640 36 1400 1468
MCⅠ8410 84 830 868 MCⅠ 7620 76 1500 1548 MCⅠ 3840 38 1480 1548
MCⅠ8810 88 870 908 MCⅠ 8020 80 1580 1628 MCⅠ 4040 40 1560 1628
MCⅠ9210 92 910 948 MCⅠ 8420 84 1660 1708 MCⅠ 4240 42 1640 1708
MCⅠ9610 96 950 988 MCⅠ 8820 88 1740 1788 MCⅠ 4440 44 1720 1788
MCⅠ10010 100 990 1028 MCⅠ 9220 92 1820 1868 MCⅠ 4640 46 1800 1868
MCⅠ10410 104 1030 1068 MCⅠ 9620 96 1900 1948 MCⅠ 4840 48 1880 1948
MCⅠ10810 108 1070 1108 ? ? ? ? light axis pitch 80mm
MCⅠ11210 112 1110 1148 ? ? ? ? MCⅠ 0280 2 80 188
MCⅠ11610 116 1150 1188 ? ? ? ? MCⅠ 0380 3 160 268
MCⅠ12010 120 1190 1228 ? ? ? ? MCⅠ 0480 4 240 348
MCⅠ12410 124 1230 1268 ? ? ? ? MCⅠ 0580 5 320 428
MCⅠ12810 128 1270 1308 ? ? ? ? MCⅠ 0680 6 400 508
MCⅠ13210 132 1310 1348 ? ? ? ? MCⅠ 0780 7 480 588
MCⅠ13610 136 1350 1388 ? ? ? ? MCⅠ 0880 8 560 668
MCⅠ14010 140 1390 1428 ? ? ? ? MCⅠ 0980 9 640 748
MCⅠ14410 144 1430 1468 ? ? ? ? MCⅠ 1080 10 720 828
MCⅠ14810 148 1470 1508 ? ? ? ? MCⅠ 1180 11 800 908
MCⅠ15210 152 1510 1548 ? ? ? ? MCⅠ 1280 12 880 988
MCⅠ15610 156 1550 1588 ? ? ? ? MCⅠ 1380 13 960 1068
